Transformations

import veux
import xara
from xsection.library import from_aisc

material = xara.Material(E=1, G=1)

shape = from_aisc("W14x211", material=material)

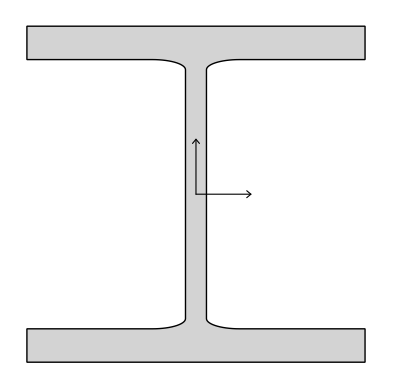

veux.draw_shape(shape, origin=True)

<veux.artist.shape.PlaneArtist at 0x12f47e660>

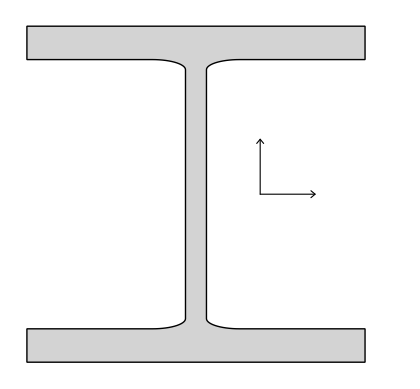

Translation

The translate method creates a new shape that is translated in space

shape = shape.translate([-3.0, 0])
veux.draw_shape(shape, origin=True)

<veux.artist.shape.PlaneArtist at 0x13c5907a0>

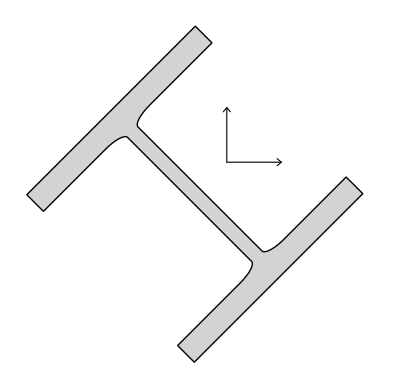

Rotation

The rotate method rotates a section:

import math
shape = shape.rotate(math.pi/4)
veux.draw_shape(shape, origin=True)

<veux.artist.shape.PlaneArtist at 0x13c73cd10>
