WideFlange

class xsection.library.WideFlange(d, bf=None, tw=None, tf=None, t=None, b=None, k=None, k1=None, centroid=None, mesh_scale=None, **kwds)

A polygon representation of a wide flange (I) section.

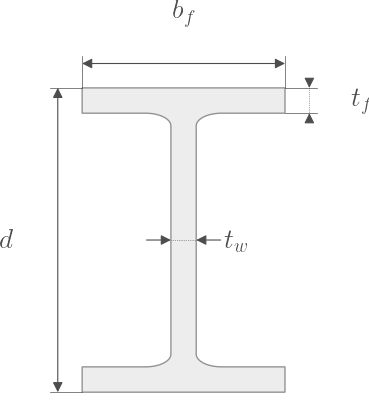

Attributes

d	Depth of the section.
bf	Width of the flange.
tf	Thickness of the flange.
tw	Thickness of the web.
k	Fillet vertical offset.

Methods

create_fibers([origin, center, types, warp, ...])	use material to force a homogeneous material
exterior([plane])
interior([plane])
linspace(start, stop, num[, endpoint, center])	Create num copies of this section with centroids linearly aranged from start to stop.
rotate([angle, principal])
shear_factor([nu])
summary([shear])
torsion_warping()
translate(offset, **kwd)

class xsection.library.WideFlange(d, bf=None, tw=None, tf=None, t=None, b=None, k=None, k1=None, centroid=None, mesh_scale=None, **kwds)

A polygon representation of a wide flange (I) section.

d: float

Depth of the section.

bf: float

Width of the flange.

tf: float

Thickness of the flange.

tw: float

Thickness of the web.

k: float

Fillet vertical offset.

shear_factor(nu=0.3)
